- Size: 2025*2100*800
- Place of Origin: SHANDONG JINAN
- Brand Name: KOOHEI
- Model Number: JBW-300C
- Weight: 750.000 kg

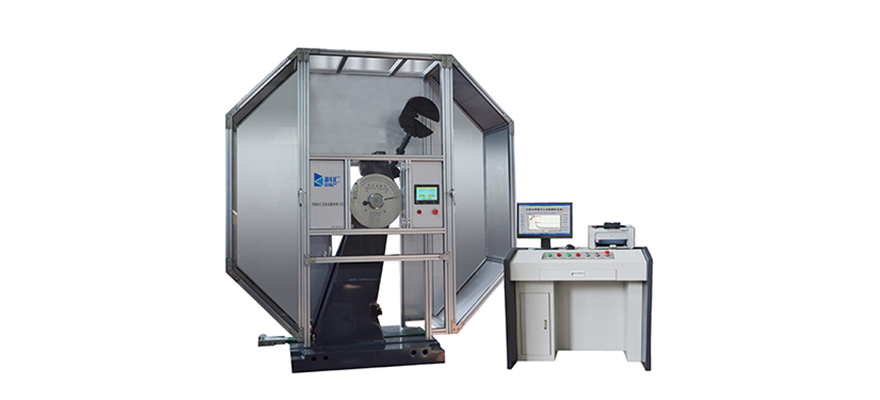

a) The principal machine adopt double supporting columns,the spindle simply supported beam,hang pendulum, radial load of bearing has reasonable distributing,especially for large energy impact testing machine, reduce main shaft deformation and reduce energy loss which result from shaft friction
b) Raising the pendulum by double stages standard reducer,operate steady
c) Hanging pendulum installation adopt hydraulic cushion,hang pendulum steady
d) Three-dimensional design of pendulm,ensure that the impact center point is correct,pendulum moment is correct
e) The impact cutter is installed and fixed by screws and is convenient and easy to replaced
f) Automatic output control after the specimen is impcted broken
g) Safety guard pin is arranged on the principle machine which is also provided with safety guard net.
h) Perform impact test as per GB/T 3808-2002<pendulum impact testing machine> GB/T229-2007<Metal Charpy impact test method>and International standard ISO R148”STEEL simply supported beam( V type notch) impact test”,ISO R83”CHARPr)impact test(U type notch)
- Size: 2025*2100*800
- Place of Origin: SHANDONG JINAN
- Brand Name: KOOHEI
- Model Number: JBW-300C
- Weight: 750.000 kg
1、Impact energy:300J
2、Impact speed:5.2m/s
3、Pre-rising angle:150°
4、Spcimen bearer span :40mm
5、Round angle of the jaw:R1.0~1.5mm
6、Round angle of impact cutting edge:R2.0~2.5mm R8 mm
7、The distance between the pendulum shaft and impact point:750mm
8、Standard specimen size:10(7.5、5、2.5)×10×55mm
9、Power supply:Three phase four wire 50Hz 380V 180W
10、External dimensions:2025×2100×800mm
11、Angle accuracy: 0.1°
