- Size: 740*580*1890
- Place of Origin: shandongjinan
- Brand Name: KOOHEI
- Model Number: WAW-300D
- Weight: 2000.000 kg
Product Description
Application:

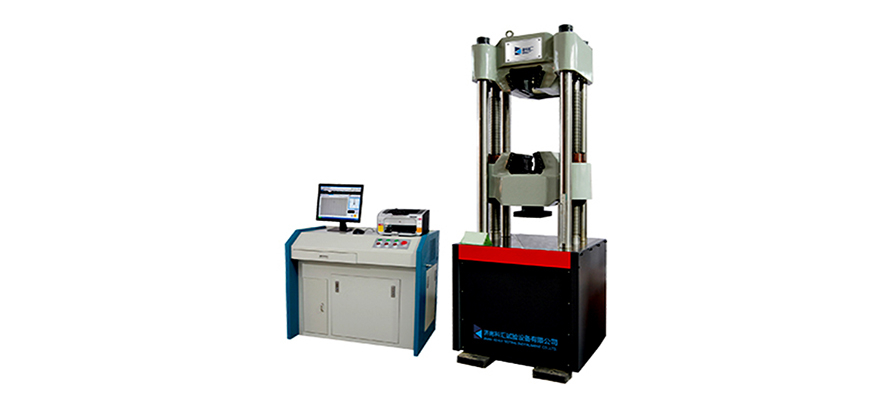

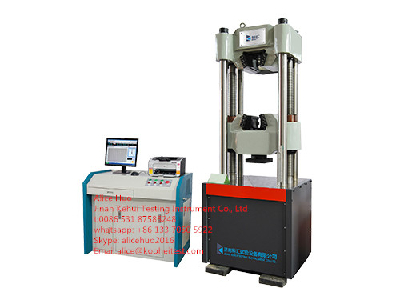

WAW_D Microcomputer Electro-hydraulic Servo Controlled Universal Machine Testing adopts the oil cylinderunderneath mode. Mainly used for the tensile , compression, bending,
shearing and other tests of mental and nonmental materials. Applicable to the metallurgy, construction, light industry, aviation, space, material, scientific research institutes, colleges, etc.
Feature:
1.High rigidity principal machine , by the finite element analysis, reasonable structure ,and reliable with long serve life ;
2.Clearance mechanism fully eliminated influence of test result caused by T type screw gap;
3.Wheel leading structure ensure that moving beam load steady in the test process
4.Motor driver sprockets, chain to make the screw pole rotate ,adjust the test space
5.Underneath type oil cylinder , double test space and test position is lowt,easy to replace the accessory and specimen.coincidence to theory of human engineering
6. Sphere structure between piston and working table can carry moment, adjust test process automatically,make applying force axes coincide with specimen center
7.Servo oil cylinder uses clearance seal ,special isostaticl pressing oil film supporting, frictionless guidance technology;
8.Microcomputers table type oil source, integration control cabinet, rich looking and high reliability. The servo oil source is configured by import NACH high-pressure Gear pump and servo proportional valve, accurate control is available.
9. KEHUI proprietary inserting card type full digital and loop controlling system, fast response speed, high reliability and strong antijamming ability.
10.Software can realize high accuracy control of the testing force and displacement, deformation of three closed loop, control modes can be combined at will, switch smoothly, that fully satisfy GB/ T228 – 2002’s requirements of <<the metal room temperature stretch the test methods>>;
11.Control system with the network interface, it is convenient to work online in laboratory and the test result transmission online.
- Size: 740*580*1890
- Place of Origin: shandongjinan
- Brand Name: KOOHEI
- Model Number: WAW-300D
- Weight: 2000.000 kg
Model | WAW-300D | WAW-600D | WAW-1000D(六柱) | WAW-2000D(六柱) | |
Maximum capacity | 300kN | 600kN | 1000kN | 2000kN | |
Measuring range of testing force | 2%-100%FS | ||||
Test force resolving capacity | 1/120000 | ||||
Relative error of testing force value | ±1% | ||||
Displacement measuring resoving | 0.01mm | ||||
Relative error of deformation value | ±1% | ||||
Testing space(mm) | Tensile | 550 | 650 | 620 | 1000 |
compression | 450 | 550 | 520 | 900 | |
Maximum stroke of working piston | 200mm | 250mm | |||
Holding width of flat specimen(mm) | 75 | 80 | 125 | 140 | |
Holding thickness of round specimen(mm) | Ф0~Ф15 | Ф0~Ф30 | Ф0~Ф40 | Ф0~Ф70 | |
标配Ф0~Ф15 | 标配Ф0~Ф20 | ||||
Pression plate size(mm) | Ф120 | Ф160 | 204×204 | Ф220 | |
The distance between two columns | 460mm | 520mm | 510mm | 700mm | |
Maximum distance bending roller(mm) | 400 | 500 | 500 | 300 | |
Width of bending roller(mm) | 140 | 140 | 140 | 160 | |
Motor power of moving beam | 0.55kw | 0.55kw | 0.75kw | 1.1kw | |
Motor power of oil pump | 2.2kw | 2.2kw | 2.2kw | 9.0 | |
Dimension (mm) | Load frame | 740×580×1890 | 830×620×2300 | 890×700×2300 | 1300×1090×3815 |
Oil source | 1010×650×870 | ||||
Weight | 2000kg | 2500kg | 3500kg | 10000kg | |
Power supply | 380V |
