- Size: about 740*620*2058
- Place of Origin: shandongjinan
- Brand Name: KOOHEI
- Model Number: WAW-E
- Weight: 2000.000 kg

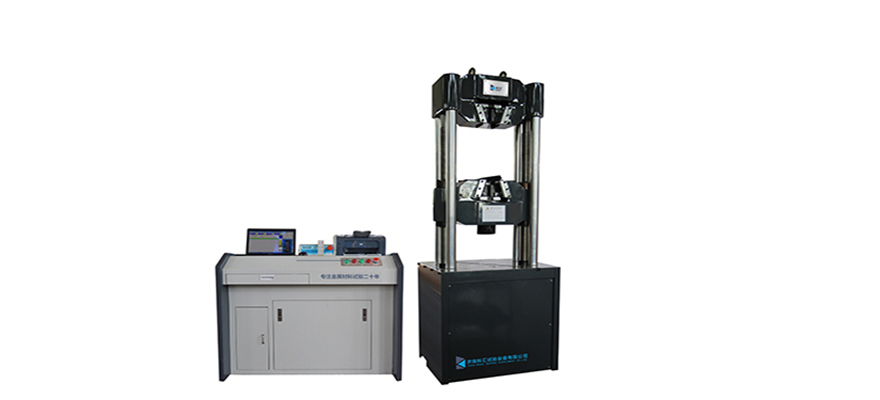

This series of testing machine is used to test the various materials and their products in a variety of environmental and simulated state of the physical properties, mechanical properties, process performance, structure, as well as seismic strength of internal and external defects in materials and components of important equipment. Can be in accordance with the corresponding standards to achieve the metal or non-metallic materials, tensile, compression, bending, shear and other types of tests, can be measured tensile strength, yield strength, the provisions of non-proportional extension strength, elastic modulus Performance, can achieve constant rate loading, constant rate deformation, constant rate displacement, constant rate strain and other closed-loop control.
● High rigid principal machine with up-fixing Oil cylinder ,test space is underneath, is easy to operate ;
● The two-way servo oil tank adjust the test of space, adjusting the speed promptly,high efficiency ;
● High precision load sensors measures testing force directly, high ability of resisting lateral and the value is accuracy and reliability ;
● The electrical integrative servo clamps oil sources control cabinet ,beautiful and practical;
● The move source server is configured by import NACH engage in a high-pressure gear pump and energy-efficiency;
● Independent low noise oil source, clamp the sample reliably ;
● KEHUI proprietary inserting card type full digital and loop controlling system ,realized the testing force and displacement, deformation loop controlled, fully satisfy GB/ T228 – 2002’s requirements of <<the metal room stretch the test methods>> ;
● Control system with the network interface, it is convenient to work online in laboratory and the test results can be transported by internet
● Be for a quick extending test of a mental, configuring relevant accessories,it can be used for doing experiment for non-metal materials such as wood , cement, concrete, rubber.
- Size: about 740*620*2058
- Place of Origin: shandongjinan
- Brand Name: KOOHEI
- Model Number: WAW-E
- Weight: 2000.000 kg
Model | WAW-300E | WAW-600E | WAW-1000E | WAW-2000E |
Maximum capacity(kN) | 300 | 600 | 1000 | 2000 |
Measuring range | 1%-100%FS | |||
Test force accuracy | ±0.5% | |||
Deformation measurement range | 1%-100%FS | |||
Relative error of deformation indicating value | ±0.5% | |||
Deformation resolving capacity | 0.007mm | |||
Displacement resolving capacity | 0.03μm | |||
Displacement measuring accuracy | ±0.5% | |||
Force control speed range | 0.001%-5%FS/s | |||
Relative error of force control speed | ±0.2% of the preset value when speed between 0.001%-1% FS/s;±0.5% of the preset value when speed between 1%-5% FS/s; | |||
Adjusting range of deformation speed | 0.001%-5% FS/s | |||
Displacement speed control accuracy | ±0.2% of the preset value when speed between 0.001%-1% FS/s;±0.5% of the preset value when speed between 1%-5% FS/s; | |||
Constant test force deformation and displacement control range | 0.007-100mm/min | |||
Holding range of round speciment(mm) | φ10-φ20 φ20-φ32 | φ10-φ18 φ18-φ29 φ29-φ40 | φ10-φ15 φ15-φ30 φ30-φ45 φ45-φ55 | φ15-φ30 φ30-φ55 φ55-φ70 |
Holding range of flat speciment(mm) | 2-13,13-25 | 2-16,16-30 | 2-20,20-40 | 10-40,40-70 |
Diameter of compression plate(mm) | 75 | 90 | 100 | 120 |
Diameter of back-up roll,compression roller(mm) | φ120 | φ160 | 204*204 | φ240 |
Adjusting range of bending back-up span(mm) | 140 | 160 | ||
Max travel of moving beam(mm) | 465 | 485 | 515 | 700 |
Width of test space(mm) | 600 | 740 | 800 | 950 |
Power supply(Kw) | 2.2 0.4 | 2.2 0.75 | ||
Dimension(mm) | 530 | 650 | 670 | 750 |
Weight(kg) | 1800 | 2500 | 3500 | 5000 |
