- Size: about 900*650*2038
- Place of Origin: shandongjinan
- Brand Name: KOOHEI
- Model Number: WAW-G
- Weight: 2200.000 kg
PURPOSE AND CHARACTERISTICS
The series of principal testing machine stiffness, powerful, accurate testing, high-end configuration to meet the high-precision test requirements, particularly suitable for inspection agencies, research institutions for precision testing, and iron and steel enterprises, large enterprises in large quantities of the test.
FUNCTIONS AND CHARACTERISTICS

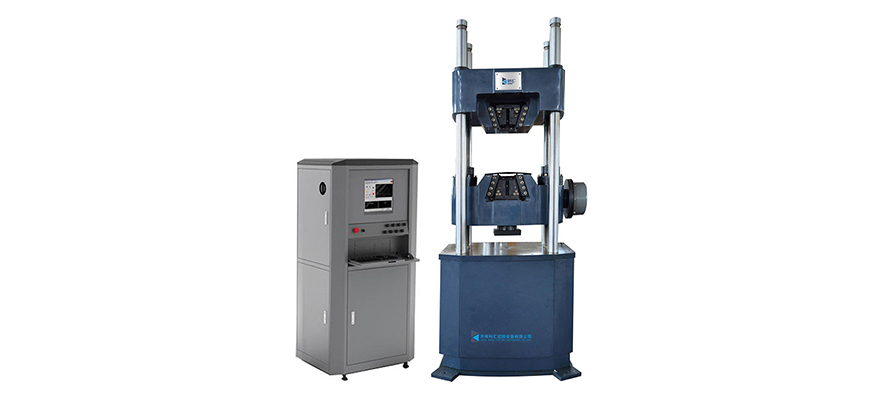

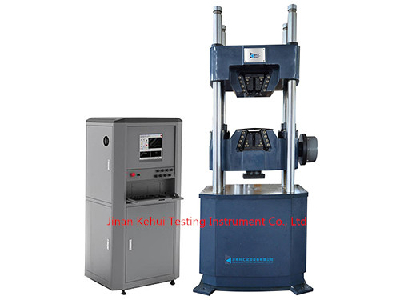

This machine is the new mode,which is originated in China, new technical heights,The load frame appearance is streamline designed and exquisitely made,four poles and double guide screws form loading test space;Underneath oil cylinder use hydrostatic oil film clearance seal technology, the movement of beam is achieved by turbine worm transmit mechanism and eliminate gap mechanism,it make sure the beam moving smoothly without gap ,semi-open stiffness jaw,imported high accuracy load sensor measuring test force directly.indicating accuracy can reach ±0.5% and with measuring range :1-100%.
Oil source system Integrated design for integrate control cabinet, servo、clamp oil source ingredient into a unit .Use imported high pressure gear pump, loading processs is steady without impacting,low noise,adopt hydraulic servo technology,adjust the pressure according to the size of load automatically
new independent control system is reliable and steady, also has high sampling frequency
- Size: about 900*650*2038
- Place of Origin: shandongjinan
- Brand Name: KOOHEI
- Model Number: WAW-G
- Weight: 2200.000 kg
Specification and Model | WAW-300G | WAW-600G | WAW-1000G |
Max capacity(KN): | 300 | 600 | 1000 |
Measuring range(kN): | 3~300 | 6~600 | 10~1000 |
Test force accuracy | ±0.5% | ±0.5% | ±0.5% |
Stress rate control range(N/mm2 .s): | 1-60 | 1-60 | 1-60 |
Stress rate error: | ±1% | ±1% | ±1% |
Strain rate control range(/s): | 0.00025-0.0025 | 0.00025-0.0025 | 0.00025-0.0025 |
Strain rate error: | ±1% | ±1% | ±1% |
Piston displacement speed range(mm/min): | 0.5-100 | 0.5-150 | 0.5-90 |
Piston displacement speed error: | ±0.5% | ±0.5% | ±0.5% |
Test force Resolution(N): | 75 | 150 | 250 |
Displacement measurement resolution(mm): | 0.001 | 0.001 | 0.001 |
Displacement measurement accuracy: | within ±0.5% | within ±0.5% | within ±0.5% |
Deformation measuring accuracy: | within ±0.5% | within ±0.5% | within ±0.5% |
