- Size: 520*260*1600
- Place of Origin: SHANDONG JINAN
- Brand Name: KOOHEI
- Model Number: WDW-5D
- Weight: 100.000 kg
u Main Technical parameters
a) Maximum testing force: 5KN
b) Accuracy of testing force: ±1%；
c) Testing force measurement range:50N～5kN, no shifting stage
d) Deformation measurement accuracy:±0.5%
e) Speed range: 0.05mm/min～500mm/min Speed accuracy: ±1%
f) Maximum tensile space: 800mm
i) Maximum compression space:800mm
j) Dimension:520×260×1600mm
K) Weight: 100Kg
m) Power supply:Single phase 220V±10%
u System configuration

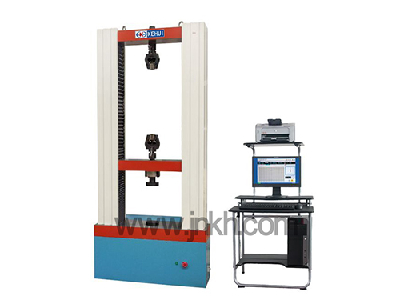

1. 5KN Main frame;(single column configuration,precision ball screw)
High presition load sensor
Ball screw assembly
Synchronous belt deceleration system 1
2. Ripple tensile grip 1
4. Special testing machine measurement control software 1
5 .Lenovo computer 1
6 HP laser printer
- Size: 520*260*1600
- Place of Origin: SHANDONG JINAN
- Brand Name: KOOHEI
- Model Number: WDW-5D
- Weight: 100.000 kg
Model | WDW-5D | WDW-10D | WDW-20D | WDW-50D | WDW-100D | WDW-200D | WDW-300D | |||||||
Max testing force | 5kN | 10kN | 20kN | 50kN | 100 kN | 200KN | 300KN | |||||||
Testing force accuracy | ±1% | |||||||||||||
Testing force measurement range | 50N～5kN
| 100N～10kN
| 200N～20kN
| 500N～50 kN
| 1kN～100kN
| 2kN～200kN
| 3KN～300KN
| |||||||
Deformation measurement accuracy | / | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |||||||
Deformation resolving capacity | / | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | 0.001mm | |||||||
Displacement measurement accuracy | ±0.5% | |||||||||||||
Displacement resolving capacity | 0.001mm | |||||||||||||
Speed range | 0.05mm/min～500mm/min, control accuracy ±1% | 0.005mm/min～500mm/min, control accuracy ±1% | ||||||||||||
Max test space | 800mm | 700mm | 700mm | 600mm | 600mm | 600mm | 590mm | |||||||
Tensile grip | Ripple strenthing clamp | 0-7 （mm) Ф4-Ф9（mm) | 0-7 (mm) Ф4-Ф9 (mm) Ф9-Ф14(mm) | 0-7 (mm) 7-14 (mm) Ф4-Ф9 (mm) Ф9-Ф14(mm) | 0-7 (mm) Ф4-Ф9 (mm) Ф9-Ф14(mm) Ф14-Ф20(mm | 14 -20 (mm) Ф9-Ф14(mm) Ф14-Ф20(mm) Ф20-Ф26(mm)
| 14 -20 (mm) Ф9-Ф14(mm) Ф14-Ф20(mm) Ф20-Ф26(mm)
| |||||||
Compression clamp (diameter) | Ф80 | Ф100 | Ф120 | |||||||||||
Bending clamp one suit | / | One | ||||||||||||
Extensometer | / | One | ||||||||||||
Power supply | 220V 50Hz 1.0KW | 220V 50Hz 1.0KW | 220V 50Hz 1.5KW | 3kW 380V 50Hz | ||||||||||
Motor | Stepper motor | Dongyuan servo motor | ||||||||||||
Principal machine dimension | 520×260× 1600mm | 720×500× 1680mm | 916×650×1940mm | 1200X770X2635 | ||||||||||
Principal weight | About 100KG | About 400KG | About 800KG | About 800KG | About 1560KG | About 1560 KG | ||||||||
