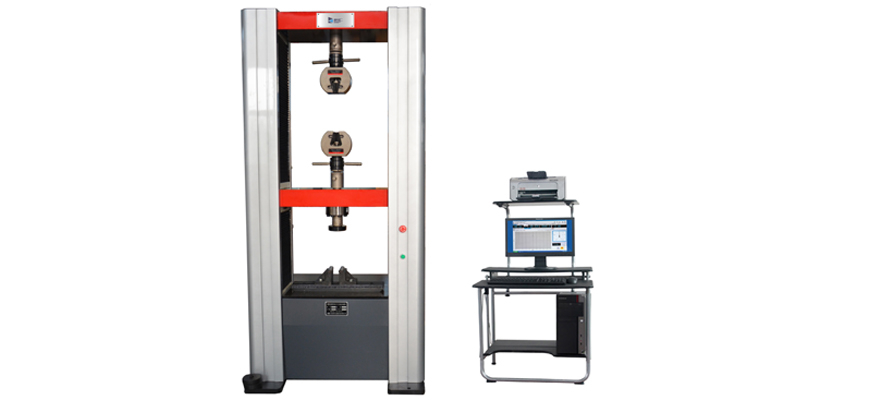

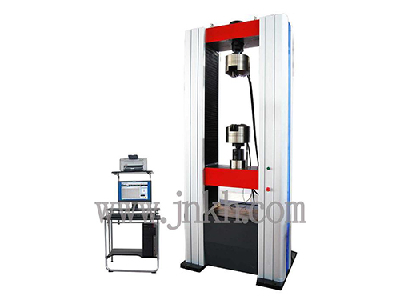

Microcomputer controlled Electronic Universal Testng Machine
WDW-E series Microcomper controlled electronic universal testing machine has high Property and high equipment mode,it adopt the most advanced and reliable structure,Japanese Panasonnic AC servo adjusting speed system and motor.PC control system and computer combine.display force,peak,displacement,deformation and test curves,and switch smoothly many control modes.the machine mainly used to do tensile,compression,bending etc tests.equipped suitable fixture , doing shearing, peeling and tearing test and do kinds of test in different environment.
1. Adopt high rigidity double space console model structure, linearity travel ensure that middle beam centering,thus reduce the data error,improve the accuracy of the test result
2. Adopt high accuracy,low resistance,zero clearance reverse and linearity low driving force,ensure that long serve life,realize that high accuracy control and repeat test result,more reflect the characteristic
3. Digital close-cloop sytem control imported servo motor and reducer transmission mechanism,servo motor has big torque output,realize the high accuracy speed control ,rapid reflection,and full speed performance in more wide load range
4. Multiple protection functions of overload,overpress,overtravel, effectively prolong serve life and operater safety
5. High accuracy tensile-compression sensor
6. Aluminium alloy shell, clean lines and rich looking and beautiful
- Size: 686x5251880
- Place of Origin: SHANDONG JINAN
- Brand Name: KOOHEI
- Model Number: WDW-10E
- Weight: 400.000 kg
Model | WDW- 10E | WDW-20E | WDW- 50E | WDW- 100E
| WDW- 200E
| WDW- 300E
| WDW- 500E
| WDW- 600E
| ||||||||
Maximum capacity（kN） | 10 kN | 20 kN | 50 kN | 100 kN | 200 kN | 300 kN | 500 kN | 600 kN | ||||||||
Mearing rangle | 最大试验力的0.4%-100% | |||||||||||||||
Relative error of indicationg value | ±0.5% | |||||||||||||||
Deformation mearuing rangle | 2%—100%Fn | |||||||||||||||
Relative error of deformation indicating value | ±0.5% | |||||||||||||||
Deformation resolving capacity | 0.001mm | |||||||||||||||
Displacement resolving capacity | 0.001mm | |||||||||||||||
Displacement accuracy | ±0.5% | |||||||||||||||
Force control speed rangle | 0.005—5%Fn/s | |||||||||||||||
Relative error offorce control speed | ±2% of the preset value when speed <0.05%Fn/s；±0.5% of the preset value when speed≥0.05%Fn/s | |||||||||||||||
Adjusting rangle of deformation speed | 0.005—5%Fn/s | |||||||||||||||
Displacement speed control accuracy | ±2% of the preset value when speed <0.05%Fn/s；±0.5% of the preset value when speed≥0.05%Fn/s | |||||||||||||||
constant test force deformation and displacement control range | 0. 5—5%Fn/s | |||||||||||||||
control accuracy of constant test force,deformation,displacement | ±0.5% of the preset value when speed ≥10%FS；±1% of the preset value when speed<10%FS | |||||||||||||||
Holdingrangeofround speciment（mm） | Ф4—Ф20 | hydraulicgrip：Ф9—Ф26 | hydraulicgrip ：Ф9—Ф26 | |||||||||||||
Holding range of flat specimen （mm） | 0-14 | hydraulicgrip：0—14 | hydraulicgrip ：0—20 | |||||||||||||
Diameter of compression plate（mm） | Ф100 | Ф120 | ||||||||||||||
Diameter of back-up roll,compression roller（mm） | Ф30 | |||||||||||||||
Adjusting range of bending back-up span（mm） | 80—480 | |||||||||||||||
Max travel of moving beam（mm） |
1050 |
1050 |
1100 |
1100 |
1350 |
1350 |
1350 |
1350 | ||||||||
Testspace width （mm） | 370 | 370 | 570 | 600 | 600 | 600 | 600 | 600 | ||||||||
Power supply | 1kw | 1kw | 1.5 kw | 1.5kw | 3kw | 5kw | 7.5kw | 7.5kw | ||||||||
dimension(mm) | 686x5251880 | 686x525 x 1880 | 945x654x2140 | 1010x750x2140 | 1100x770x2617
| 1100x770x2617
| 1320x790x2500
| 1320x790x2500
| ||||||||
Weight(kg) | 400 kg | 400 kg | 700 kg | 1100 kg | 1560 kg | 1560 kg | 2000 kg | 2000 kg | ||||||||
